Skyline (RNAseq) help

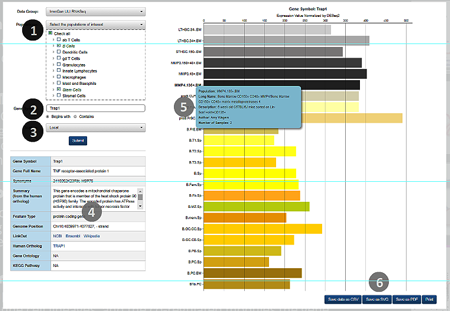

Use the Skyline browser for a general overview of expression profiles for RNA-seq data.
Select a custom set of cell types and search for the genes to display, based on gene symbol.

(1) Select a custom set of individual cell-types and/or lineage-specific datagroup(s). ("key populations" datagroup used by default.)

(2) Enter a Gene Symbol to display the expression profile. The scale can be adjusted for local/global, linear/Log10 (3)

(4)
Basic annotation information on the gene and links to external databases are provided.

(5) Rollover for detailed sample information and click for sorting protocol.

(6) Click to download the corresponding data (.csv) or expression profile image ( .svg, .pdf)
